ARO Original Factory pattern 261©
For ALL 71-76 GM ALL SCISSORS FRAME CONVERTIBLES
Buick - Centurion, LeSabre / Chevrolet - Impala, Caprice / Cadillac - Eldorado
Oldsmobile - 88, Delta 88 Royale, 98 / Pontiac - Bonneville, Catalina, Grandville
Rear window assembly with matching bottom trim.
Available as Non-heated or Heated glass (with defroster grid), or Custom economy window (AS-6 40 gauge clear vinyl)
We guarantee the zipper halves on our tops & windows match when purchased together. When ordering the glass curtain or top separately, we send each unit with a FULL zipper ( both halves) in the event of non matching zippers on your old unit. The new half would need to be sewn on to replace the old unit.
THE GLASS REAR WINDOW ASSEMBLY REQUIRES THE RE-USE OF THE MOUNTING PLATES FROM YOUR ORIGINAL GLASS. (CLICK ON PHOTO TO ENLARGE)
THESE PLATES WERE MOUNTED TIGHTLY IN BOTH LOWER CORNERS OF THE GLASS AT THE FACTORY. THE PLATES CONNECT TO THE SPRING LOADED ARMS IN THE WELL - THE GLASS MUST BE HOOKED TO THE SPRING LOADED ARMS. THESE ARMS PULL THE GLASS BACKWARDS, OUT OF THE WAY OF THE TOP FRAME WHEN THE TOP IS BEING LOWERED.
IF THESE ARMS ARE NOT ATTACHED TO THE
GLASS - BREAKAGE IS GUARANTEED TO OCCUR.
 |
Overhead view of old factory window assembly shown upon removal of outer top cover |
|
Side view of old factory window assembly shown upon removal of outer
top cover, with correct positioning of the spring arm

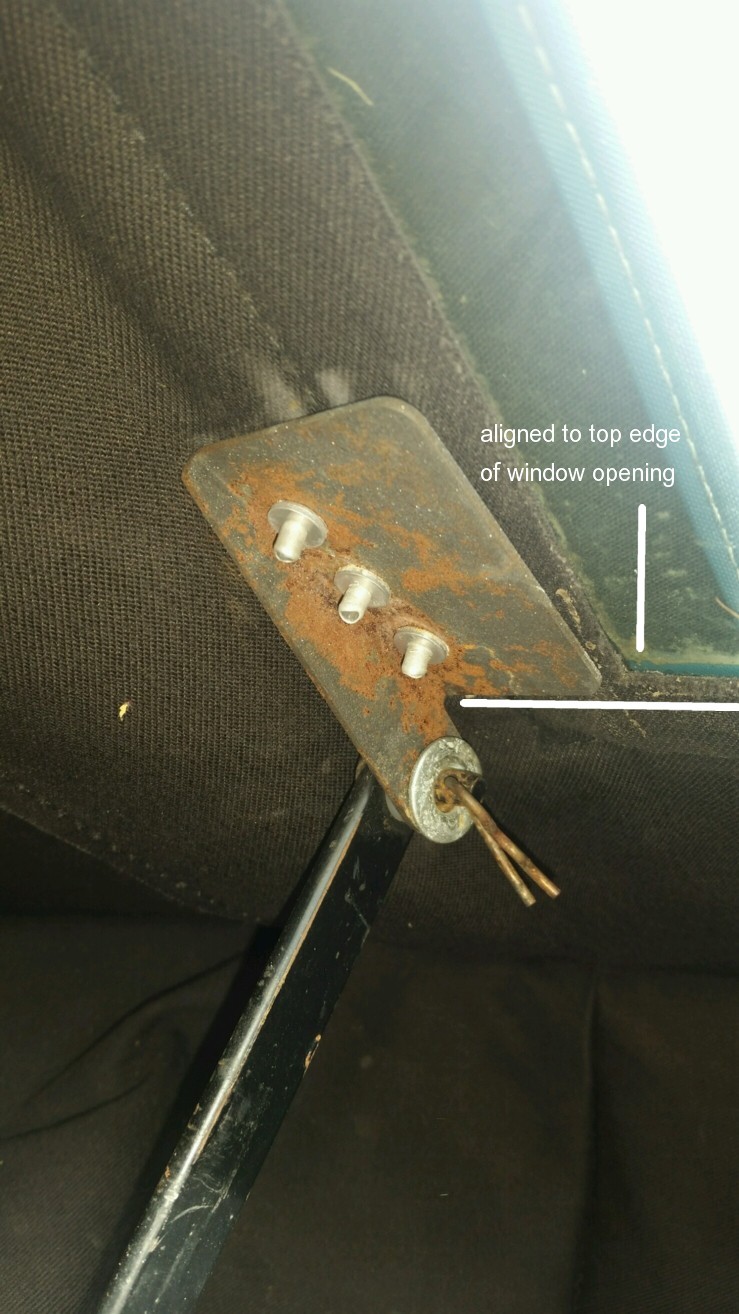

bracket. SEE BOTTOM PICTURES  INTERIOR VIEW OF OLD, PROPER POSITIONED PLATE  DAMAGE CAUSED BY IMPROPER POSITION OF PLATE  |
Glass has broken due to incorrect mounted position of the spring arm plates - the glass was unable to pull back far enough to allow the glass to be out of the way of the top frame
|
|
PHOTOS BELOW SHOW THE ENTIRE REAR CURTAIN
ASSEMBLY ONLY, NOT THE CONVERTIBLE TOP.
DUE TO THE DESIGN OF THE TOP FRAME - THE FRONT EDGE OF THIS CURTAIN EXTENDS FAR FORWARD AND ATTACHES TO THE BOW JUST BEHIND THE FRONT SEAT, UNLIKE EARLIER WINDOW DESIGNS WHICH FASTEN TO THE REAR BOW DIRECTLY ABOVE THE WINDOW . (THE ZIPPER IS MEANT TO ATTACH THE TOP AND WINDOW ASSEMBLY TOGETHER, NOT TO ENABLE THE WINDOW TO BE LOWERED.) |
| 1971-76 GM
Non-heated glass A60 (1042) Black trim - no defroster grid
|
1971-76 GM
Non-heated glass A61 (1006) White trim - no defroster grid
|
| 1971-76 GM
Heated (defroster) glass A60 (1042) trim
|
1971-76 GM
Heated (defroster) glass A61 (1006) White trim
|
|
1971-76 GM NON-HEATED glass with Haartz A35 (1012) BUCKSKIN bottom trim |
1971-76 GM NON-HEATED glass with Haartz A37 (1357) LT.BLUE bottom trim |
 |
 |
| 1971-76 GM DEFROSTER glass with Haartz A42 FIRETHORN RED vinyl bottom trim | 1971-76 GM DEFROSTER glass with Haartz Blue A-38 (1358) vinyl bottom trim |
 |
 |
| 1971-76 GM DEFROSTER glass with Haartz Stayfast ST-1916 BURGUNDY bottom trim |
|
| 1971-76 GM NON-HEATED glass with Haartz HOT ROD Stayfast HR-2494 LOGO RED bottom trim |
 |
| 1971-76 GM HEATED (DEFROSTER GRID) glass with Haartz HOT ROD Stayfast HR-2494 LOGO RED bottom trim. |
 |
| 1971-76 GM NON-HEATED glass with Haartz HOT ROD Stayfast HR-1015 ORANGE bottom trim |
 |
| CLEAR VINYL WINDOWS |
|
1971-76 GM custom ECONOMY WINDOW (40 gauge AS6 clear vinyl) with A35 BUCKSKIN (1012) bottom trim
|
|
1971-76 GM custom ECONOMY WINDOW (40 gauge AS6 clear vinyl) with A40 Dk.Tan (2091) bottom trim
|
|
1971-76 GM custom ECONOMY WINDOW (40 gauge AS6 clear vinyl) with HotRod Orange Stayfast (1051) cloth trim
|
|
1971-76 GM custom BLANK WINDOW (for "GANGSTER" style window ring and glass or sewn in custom logo) with HotRod Orange Stayfast (1051) cloth trim
|
|
1971-76 GM MOUNTED GANGSTER GLASS WINDOW - 9" x 26" -NO METAL RINGS REQUIRED (CLICK ON PHOTO FOR ENLARGED VIEW)
|
|
1971-76 GM custom ECONOMY WINDOW (40 gauge AS6 clear vinyl) with ST9009 GRAY STAYFAST CLOTH TRIM
|
|
1971-76 GM custom ECONOMY WINDOW (40 gauge AS6 clear vinyl) with GM WHITE A61 (1006) VINYL TRIM
|
|
TINTED VINYL - DK.CHARCOAL
|
|
ECONOMY FULLVUE - Full vinyl to body line NO MATCHING BOTTOM TRIM
|
